UV Metallizing
What is Metallizing?
Vacuum Metallizing is a process which facilitates creation of a metal layer on substrate under vacuum conditions. It’s a three layer coating process in which
1. First layer is the base coating which is used for adhesion.
2. Second layer is the aluminium metal under vacuum.
3. Third layer is the top coating which is used for protection of aluminium film and is scratch resistant.
What is UV Metallizing?
UV Spray and plastic Metallizing is the combination of UV painting(UV curable) and vacuum evaporation of aluminium coating. It is an ideal plastic materialssurface treatment.
What is Electroplating?
It is a process of depositing a thin layer of desired metal over a metal object with the help of acid. We don’t do Electroplating or chrome plating.
UV Line
State of art metallizing UV line imported from China, capable of producing 2.5 million parts per month.

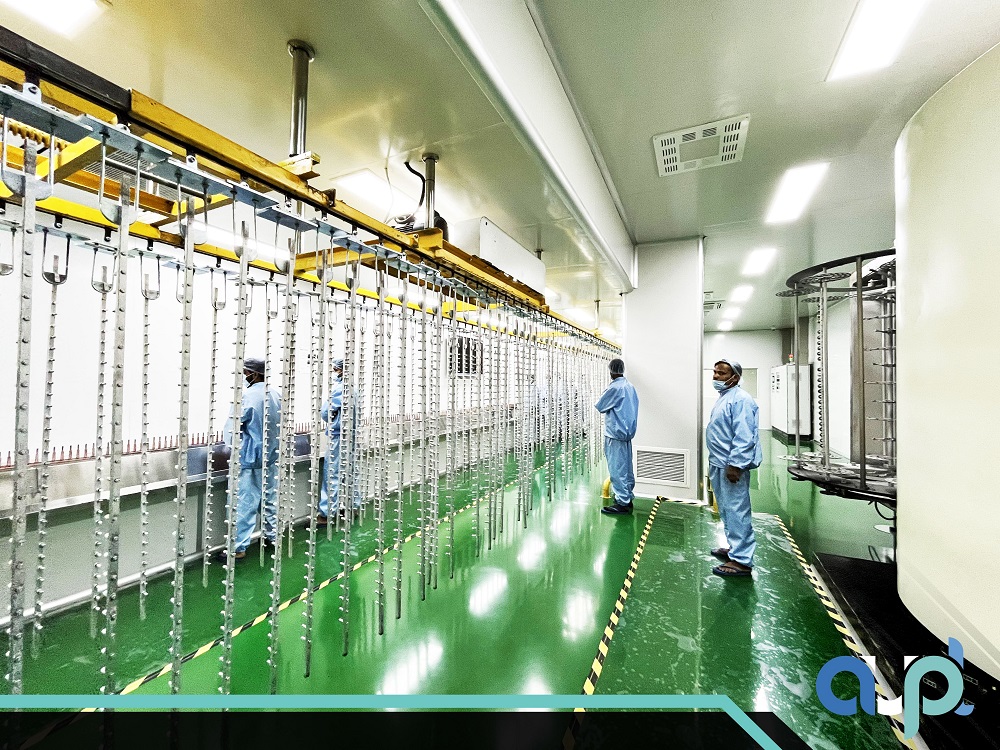

UV Metallizing Area

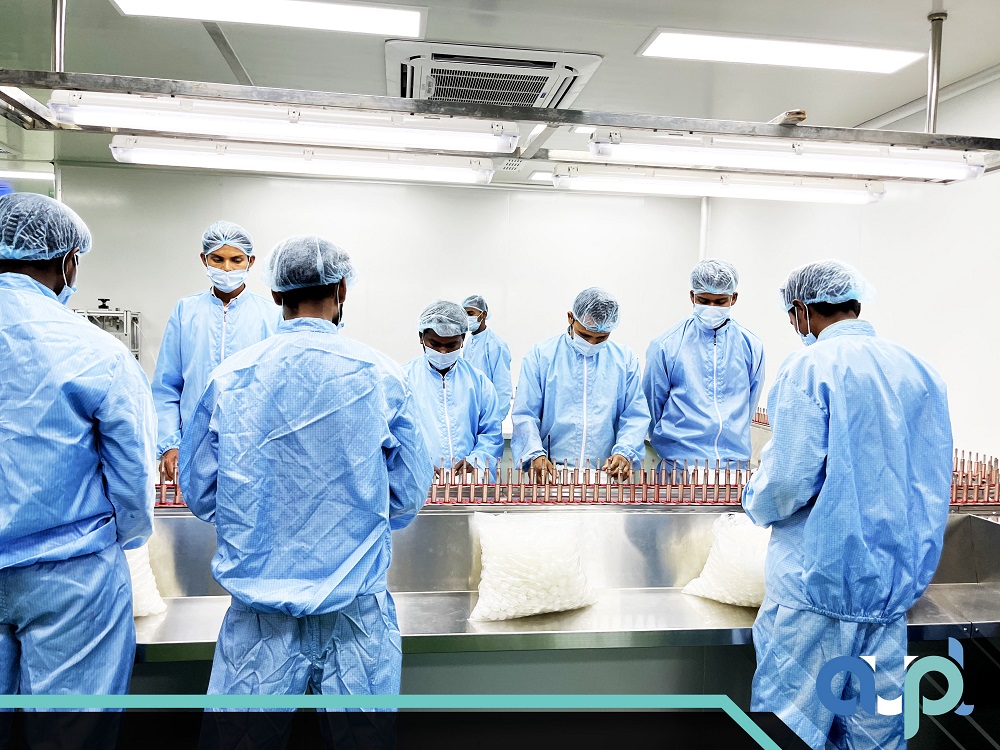

Inspection Area
Frequently Asked Question
Q. What is Sampling Charge?
First time sampling is free of cost. After that sampling charge will be ₹3000 for 10pcs.
Q. What is Fixture Charge?
Fixture is plastic component which holds the article during UV Metallizing process. It includes cost of mould, plastic and moulding charge.
Fixture Charges per DIA
» Up to 40mm DIA : ₹20,000
» 40 to 70mm DIA : ₹30,000
» 70 to 100mm DIA : ₹40,000
» 100 to 125mm DIA : ₹50,000
(50% has to be paid by Client and rest 50% would be beared by Aadinath UVPack)
Q. Which substrates are suitable for metallizing?
Substrates over which we do metallizing:-
» Plastics (Mainly Polycarbonate, ABS, PP, SAN)
» Aluminium (Without Oil & Wax)
» Glass
Substrates over which we don’t do metallizing:-
» High Density Plastics (HDP)
» High Impact Plastics (HI)
Q. What is MOQ(Minimum Order Quantity)?
Below 40mm Diameter : 40,000 pcs
Between 40-90mm Diameter : 25,000 pcs
Between 90-140 Diameter : 15,000 pcs
Q.What is the temperature during Metallization process?
In the range of 70° C.
Q.What are the benefits of providing advanced projection?
It leads to:
- More Effective Production Scheduling.
- Inventory management & Reduction in excess stock.
- Increased Customer satisfaction.
Q.What is size limitation do you have in UV Metallizing?
Maximum size limit for uv metallization is 120mm Dia and height 50mm.
Q.What is the thickness for UV coating?
10 micron to 20 micron.
Q. What are our payment terms?
50% Advance & Balance against the Performa Invoice before delivery.
